SV796 CP4-6x15x5mm GRW GERMANY Spindle bearing
Spindle bearings, GRW HQW GMN germany brand
SV796 CP4-6x15x5mm GRW GERMANY
High Precision Angular Contact Ball Bearing SV796 CP4 L2TA XL001 CP - Professional Solution for High-Speed, High-Accuracy Spindle Application
High Precision Angular Contact Ball Bearing SV796 CP4 L2TA XL001 CP - Professional Solution for High-Speed, High-Accuracy Spindle Applications.
As a premium ultra-precision bearing, SV796 CP4 L2TA XL001 CP is designed to meet the strict requirements of industrial machinery, CNC equipment, and precision spindles, delivering exceptional performance and long service life.
Bearing Model | SV796 CP4 L2TA XL001 CP |
Bearing Type | Single Row Angular Contact Ball Bearing |
Brand | GRW (Reference), HQW or barden Germany brand |
Precision Class | CP4 (ISO Class 4 Tolerance) |
Inner Diameter (d) | 6 mm |
Outer Diameter (D) | 15 mm |
Width (B) | 5 mm |
Minimum Chamfer (rmin) | 0.3 mm (Reference) |
Contact Angle | 15degree (C-Type, Reference) |
Material | Bearing Steel (100Cr6) |
Cage/Lubrication/Internal Clearance | Customized (L2TA / XL001 / CP Suffix) |
Sealing Type | Open (No Seal, Reference) |
Application | CNC |
we have compatible type, but without cage below.

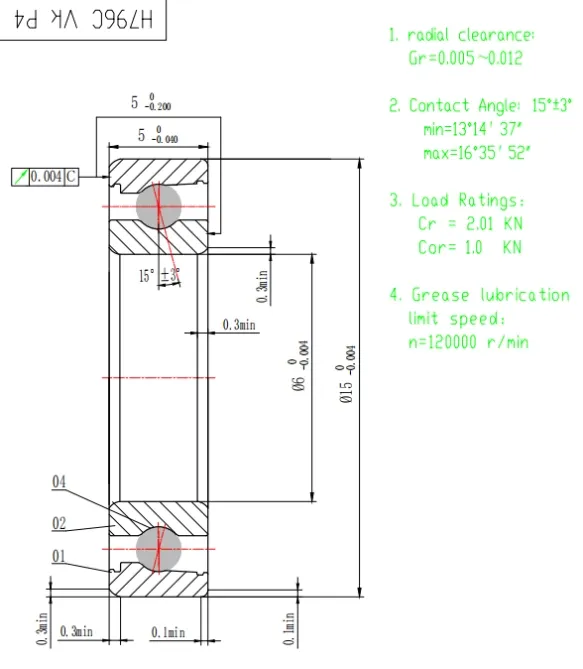

HY 719/6 C P4 VOLLKUGELIG 6x15x5mm for small turbojet jet engine use bearings.High speed high temperature.
SV796 CP4 L2TA XL001 CP bearing, SV796 ultra-precision bearing, CP4 precision angular contact ball bearing, 6x15x5mm bearing, GRW SV796 bearing, CNC spindle bearing, high-speed precision bearing, SV796 CP4 L2TA XL001 CP specifications
Bearingfit we specialize in providing world-class BARDEN/HQW/GRW bearing solutions for high-speed, high-temperature applications.
GRW Spindle Ball Bearings
- accuracy class of ABEC 7 (DIN P4) and higher
- contact angle of 15° (C) or 25° (E)
- corrosion-resistant, high-performance steel
- balls made from ceramics or steel
- solid cages made from phenolic resin
- oil or grease lubrication
- suitable for bearing combinations with three defined preload classes (S, M, L) or individual preload force
we also have bearing available below
SV788CP4XULG331
SV788 C P4 TA X UL L001 Germany
Looking for GRW HQW BARDEN GMN bearings?
