turbojet engine bearing

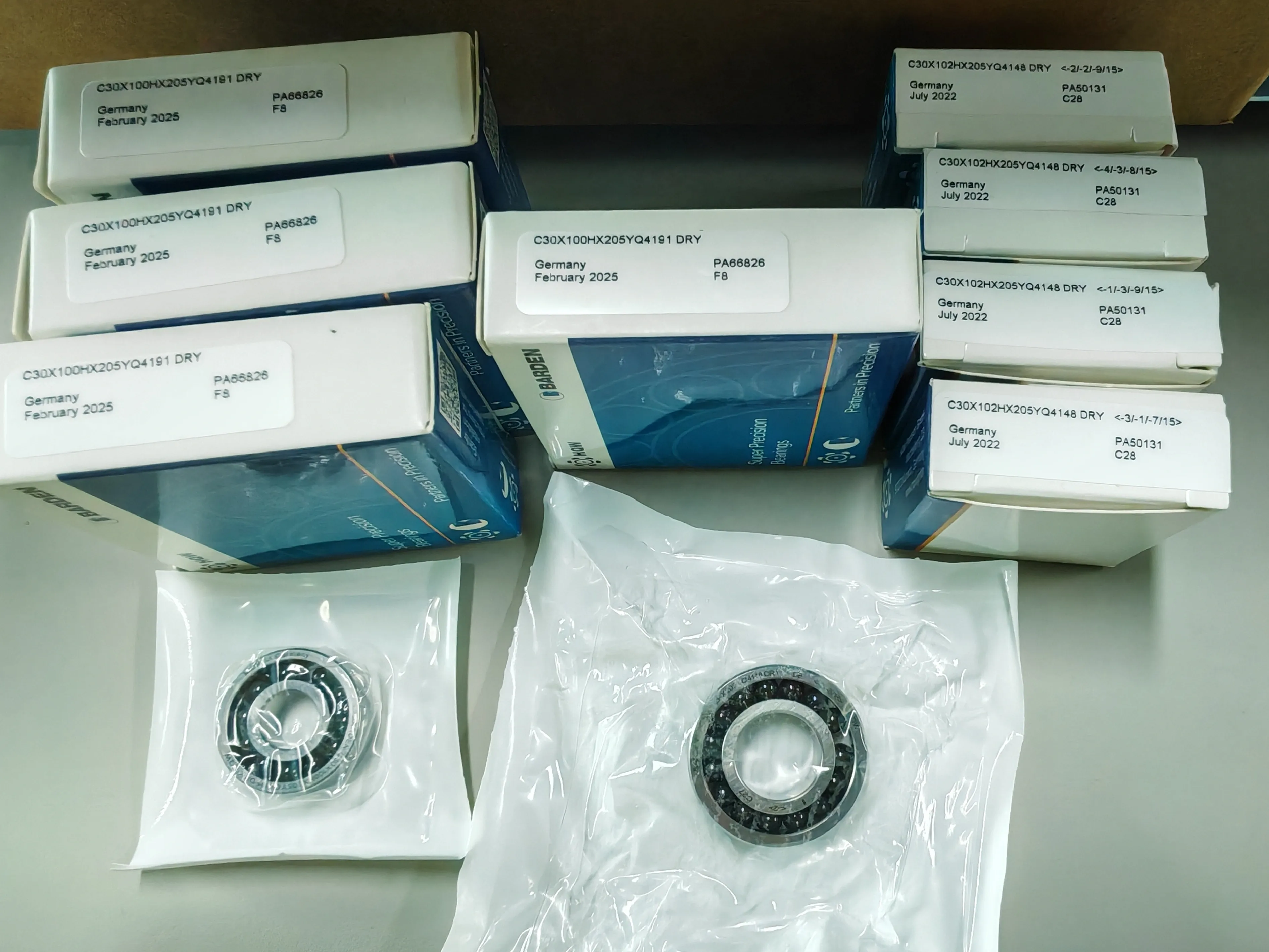

7002/QC004148 C30X102HX205YQ4148 15x32x9mm barden
C30X102HX205YQ4148 DRY for aircraft,aerospace bearings
7002/QC004148 C30X102HX205YQ4148 DRY 15x32x9mm Model Jet Turbines
HQW BARDEN bearings
we have ready in stock, can arrange shippment in 3-5days.
Introduction:
Inner and outer ring material: All models are made of high nitriding stainless steel (X30N material)
Ball material: SI3N4 ceramic ball High-performance ceramic ball roller
Cage: full ball or high strength alloy steel surface silver plated cage
Heat treatment : special heat treatment and cold treatment process
Bearing type: Full ball no cage angular contact bearing
Accuracy: Europe P4, the United States ABEC7
Single bearing up to the limit speed: 156,000 RPM,200,000 RPM (oil lubrication)
Lubrication: jet aviation kerosene lubrication while reducing the temperature
Working temperature: 250-450 degrees Celsius Application conditions: short time high-speed high temperature operation model jet engine.
In addition,we can also manufacture φ8-400mm turbojet high-speed and high temperature bearings.
full ceramic turbine bearings for the model gas jet turbine fraternity. The standard size bearing has been used persistently during the development of many gas turbine models. As the bearing plays a vital role, its accuracy and durability are key in making sure that your hobby continues with minimal costs.
Full ceramic bearing solutions for most model gas turbines we can now offer a full complement (no cage/retainer) ceramic solution with an ABEC 7 tolerance (also denoted as P4) and pricing which is competitive with their steel counterparts.
The Si3N4 (Silicon Nitride) ceramic grade is used as this is most suitable for high speed, long endurance applications. With reduced weight, reduced ball inertia and massive improvements in low lubrication scenarios these full ceramic possibilities offer significant improvements on component life, especially when you consider what happens to various engine components when steel/hybrid bearing lubrication systems fail. Due to the nature of ceramic balls rolling on a ceramic inner and outer rings, the high hardness values dictate higher life and far more stable running characteristics. This ceramic on ceramic system also provides significant resistance against hard particles being rolled into the raceways (unlike their steel counterparts). Corrosion resistance is 100% of course with no ferritic content at all.
The following brands of aircraft model jet engines can be matched with high temperature and high speed ceramic ball bearings:
Bearing Type | HQW Type | Dimension |
796 | C30X19M6 | 6×15×5mm |
726 | C30X2M6 | 6×19×6mm |
788 W6 | C30X18M8 | 8×16×6mm |
798 | C30X19M8 | 8×19×6mm |
708 | C30X38 | 8×22×7mm |
7800 | C30X1800 | 10×19×5mm |
7900 | C30X1900 | 10×22×6mm |
7000 | C30X100 | 10×26×8mm |
7200 | C30X200 | 10×30×9mm |
7801 | C30X1801 | 12×21×5mm |
7001 | C30X101 | 12×28×8mm |
7802 | C30X1802 | 15×24×5mm |
7902 | C30X1902 | 15×28×7mm |
7002 | C30X102 | 15×32×9mm |
7202 | C30X202 | 15×35×11mm |
7803 | C30X1803 | 17×26×5mm |
7903 | C30X1903 | 17×30×7mm |
7003 | C30X103 | 17×35×10mm |
7904 | C30X1904 | 20×37×9mm |
7004 | C30X104 | 20×42×12mm |
AMT NETHERLANDS (JET TURBINES)
BEHOTEC (JET TURBINES)
BVM
CIPPERER (CAT)
JESUS ARTES-PEDEMARCO (JET)
MODELLBAUPARADISE (JET TURBINE )
FUNSONIC
PST (JET TURBINES)
RAM
SCHRECHLIN TURBINES
SIMJET (JET TURBINES)
SKY PIPE
SWB
WREN (JET TURBINES)
JETCAT (JET TURBINE)
