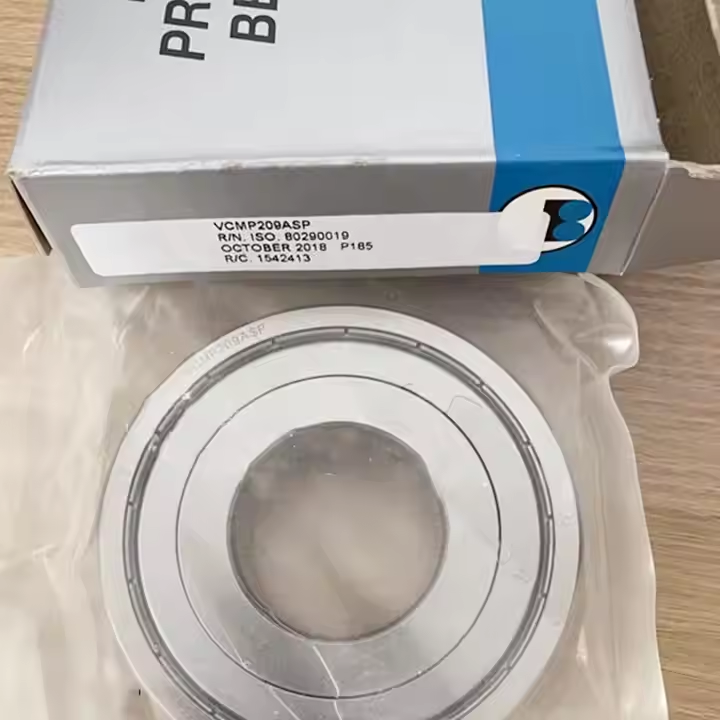

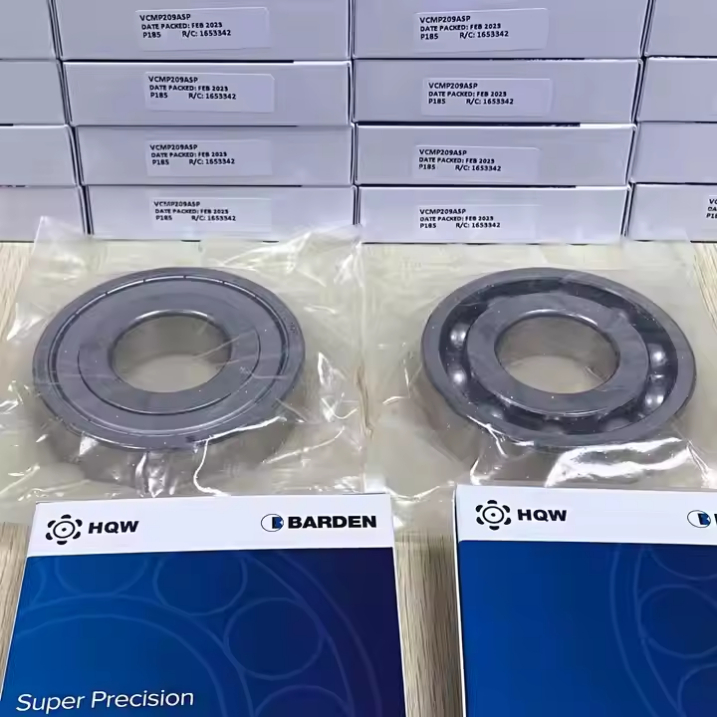

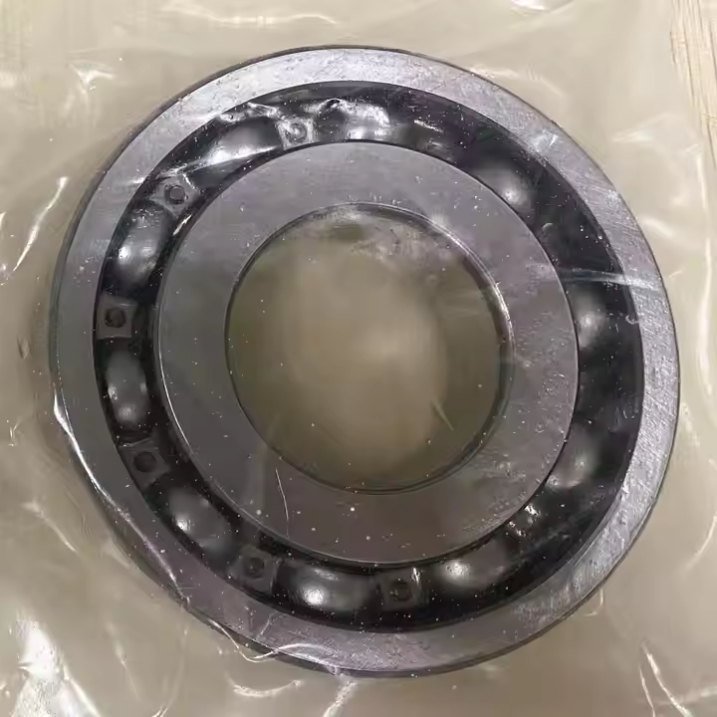

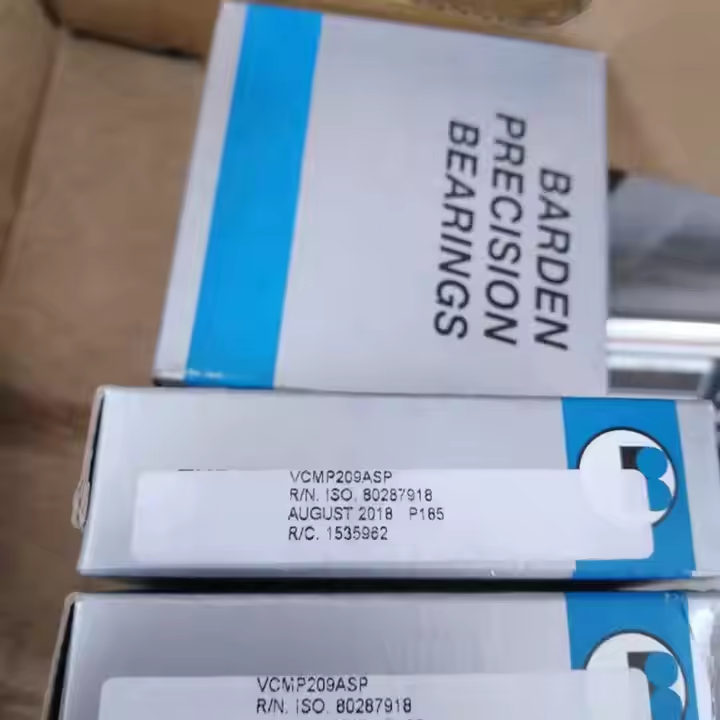

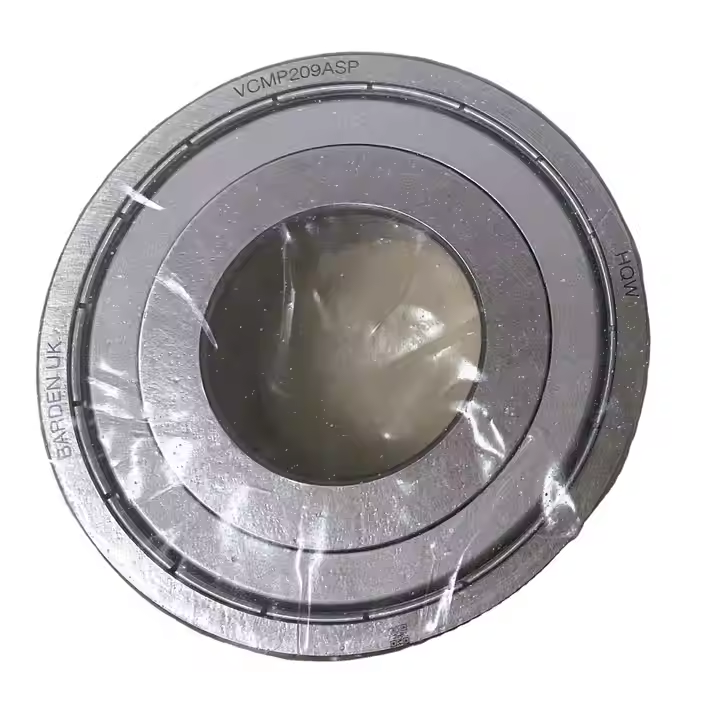

VCMP209ASP BARDEN BALL BEARING Stainless Steel Molecular Pump Bearing VCMP209 series

Specifications

Training Duration
2 days
Group Size
20-50 people
Training Mode
In-person intensive training
VCMP209ASP C209SY10 for Dry Pump IXH1210/1820/3030T/GXS160/250-36.5x85x19mm
C209SY10 FAG with dimensions ID: 36.5mm OD: 85mmThickness: 19mm,
Stainless Steel Molecular Pump Bearing VCMP209

usually use together with C206SY7 20x62x16mm
BARDEN BEARING HQW C206SY7 for Dry Pump GX600/IXH645BP/IGX100N Vacuum Pumps

Material of Ring
Chrome Steel
Material of Balls
Si3N4 Ceramic Balls
Cage
Steel Cage
Feature
Vacuum; High Speed
Application
Vacuum Dry pump
Seals Type
Single Shield
CERTIFICATE
COC
Lubrication
Oil
Precision
ABEC7 (P4)
Structure
Deep Groove Ball Bearing
Model
GX600/IXH645BP/IGX100N,Exchange into SCB1216
  1. High speed: The vacuum pump needs to reach a high speed during operation, so the bearing is required to have good high-speed performance to adapt to the high-speed working environment,
  1. High temperature resistance: Since a large amount of heat is generated during the operation of the vacuum pump, the bearing is required to have good high-temperature resistance to ensure normal operation in a high-temperature environment.
  1. Accuracy and stability: The vacuum pump has high requirements for accuracy and stability, so the bearing is required to have high accuracy and stability to achieve precise axial and radial positioning
  1. Long life: The service life of the vacuum pump bearing has an important impact on the maintenance and replacement cost of the vacuum pump, so the bearing is required to have a long service life.
  1. Low friction and low noise: In order to reduce the energy consumption and noise of the vacuum pump, the bearing is required to have a low friction coefficient and noise level.

Product Name
BARDEN Stainless Steel Molecular Pump Bearing VCMP209
Brand
BARDEN
Material
Stainless Steel
Bore Size
45mm
Outer Diameter
110mm
Width
19mm
Weight
0.2kg
Application
vacuum pump
turbomolecular pumps, dry pumps, and other products..
Due to the requirements of high temperature, ultra-high speed, vacuum and high reliability, molecular pumps have always been high-standard applications in the bearing industry.
Barden UK Group is the main bearing supplier for molecular pumps, and its products cover a full range of turbomolecular pumps, dry pumps and other products such as LEYBOLD/PFEIFFER/VARIAN (Agilent)/ALCATEL (Adixen)/EDWARDS (BOC)/Osaka/Seiko Seiki/Shimadzu/ etc.
For the molecular pump maintenance market, our company often has British BARDEN (UK) bearings and some other models of bearings.
1、Pfeiffer:TPH50, TPH060, TMU060, TMH071P, HIPACE80, TMH240, TPH/TPU-330，TPU180, TPH240, TPU240, TMH240, TPU510, TPH180, TMU180, TPH190，TMH160
2、Leybold:TMP35, TMP50, TMP330, TMP331, TW250, TW300, TW70，TMP450, TW700L, TMP1000C, TMP1100, T1600, MAG340, MAG400，MAG900, MAG2000MG
3、Alcatel（Adixen）:MDP5011, 5033, 5150,5400,ATP150,ATP400,ATH300，ATH1000,ATH1300M
4、Varian（Agilent)：V-250, V-300, V-301, V-70, V-80, V-450, V903, V-1000，RAVA300, V200, V550, V551, NAVIGATOR TV1001, V1800
5、Edwards:EXT70, EXT255H, EXT501C, IXP100A, ET1600P, IXH4500, IXH4545，IXH5000Q, IXH6045, IXH500Q, IXH1820T, IXH1210
