D6000/602847 10x26x8mm TURBOJET engine bearing
D6000/602847 10x26x8mm TURBOJET engine bearing
D6000/602847 10x26x8mm TURBOJET engine bearing
D6000/602847 10x26x8mm TURBOJET engine bearing
turbojet engine bearing

D6000/602847 10x26x8mm TURBOJET engine bearing

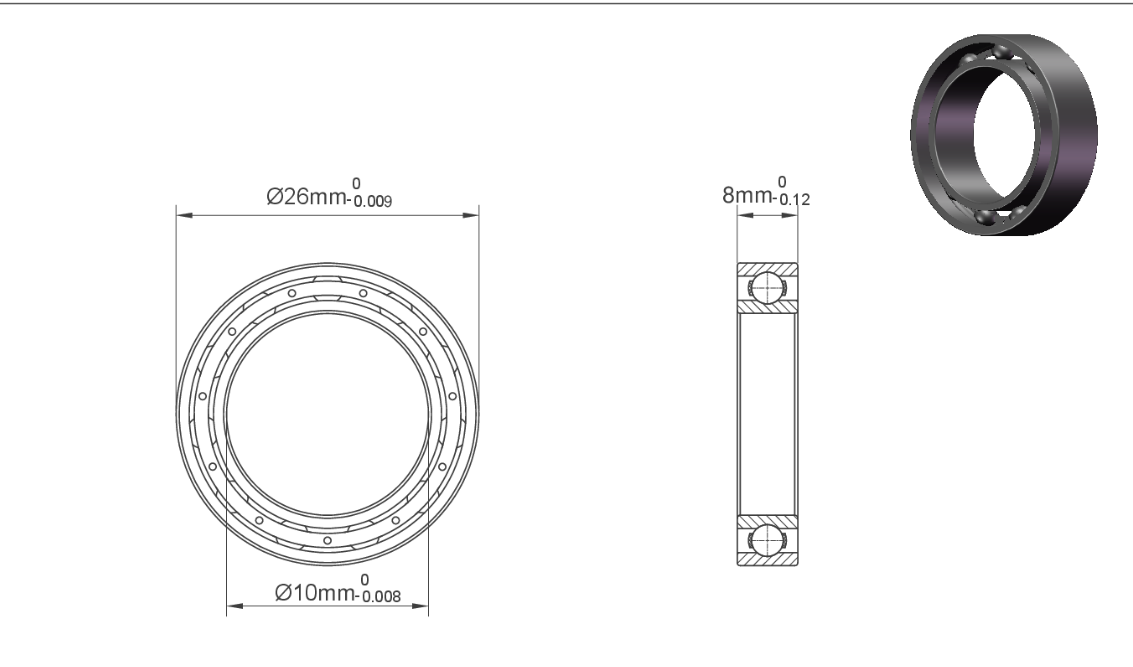

Germany GRW Model Jet Gas Turbine Bearing D6000/602847 10mm Bore X 26mm OD X 8mm Wide Turbojet Micro Jet Engine Application

Specifications

Service Duration
4-8 months
Service Content
Current state analysis, solution design, implementation guidance
Deliverables
Optimization plan, process documentation, system configuration

GRW 6000

D6000/603883 D6000/602847
HQW 7000/QC004191 C30X100HX205YQ4191
compatible with HQW BARDEN bearings



BARDEN Turbojet Engine Bearing Turbojet Compressor Bearing
Brand Name
GRW/HQW/BARDEN
Place of Origin
Germany
Material of Ring
S440C or SV30 stainless steel
Material of Balls
SI3N4 ceramic ball
we have large stock of HQW BARDEN GRW turbojet compression molding machine bearings and turbojet engine bearings.
Please feel free to contact us!
No.
Brand
Model
size
1
GRW
D688/602976
8x16x6mm
2
GRW
D698/610105
8x19x6mm
3
GRW
D608/602839
8x22x7mm
4
GRW
D6000/602847
10x22x8mm
5
GRW
D6001/604266
12x28x8mm
6
GRW
D6002/608982
15x32x9mm
7
GRW
HYSV6904
20x37x9mm
No.
Brand
Model
size
1
HQW
7000/QC004191
10x22x8mm
2
HQW
796/QC002451
6x15x5mm
3
HQW
798/QC004160
8x19x6mm
4
HQW
708/QC004149
8x22x7mm
5
HQW
788/QC004159
8x16x6mm
6
HQW
7001/QC003966
12x28x8mm
7
HQW
7002/QC004148
15x32x9mm
8
HQW
785/QC002423
5x11x3mm
9
HQW
7904/QC004193
20x37x9mm
10
HQW
C30X102HX205YQ4148
15x32x9mm
11
HQW
C30X38JX205YQ4149
8x22x7mm
12
HQW
C30X100HX205YQ4191
10x22x8mm
Turbojet engine ceramic high temperature bearing is imported from Germany GRW, turbojet ceramic bearings.

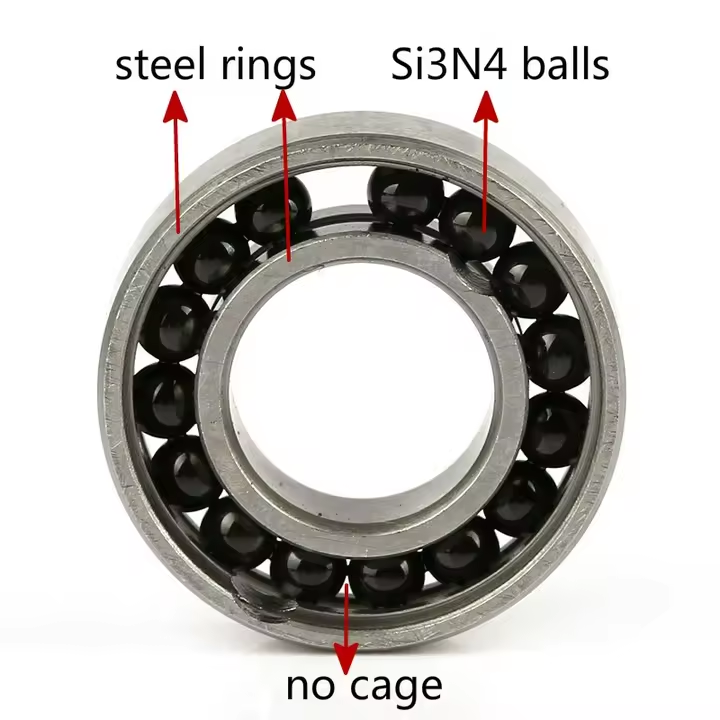

without cage Precision level: European P4, American ABEC7 Single bearing limit speed: 100,000rpm,120,000rpm,156,000 rpm, 200,000 rpm (oil lubrication),etc. Lubrication method: oil injection lubrication Maximum operating temperature: 350 degrees Celsius

Learn More
GRW produces metric and imperial models with inner holes of 1-35mm and outer diameters of 3-47mm (accuracy level up to ABEC9/P2), as well as special bearings such as outer ring with flanges and inner ring widening. Since 2017, GRW has been dedicated to the design and production of high-precision bearings, which are widely used in high-end fields such as precision instruments, flow meters, medical equipment, precision spindles, vacuum pumps, and aerospace.
Keyword:#GRW #GermanyGRW #aircraft turbojet engine #ceramic ball bearings #GRW ceramic ball bearings #GRW aircraft bearing #aircraft turbojet engine #high temperature ceramic ball bearings
Turbojet Bearing ceramic Ball Full Compeletment Turbojet Bearing BEHOTEC

Application conditions:
Short -time high -speed and high -temperature operation. The following brands of high -temperature high -speed ceramic ball bearings of the air model jet engine can be matched:
AMT Netherlands (Jet Turbines) Behotec (Jet Turbines) BVM Cipperer (cat) Funsonic Jesus Artes-Pedemarco (Jet)Jetcat (jet turbine) Modellbauparadise (Jet Turbine) Pst (Jet Turbines) Ram Schrechlin Turbines Simjet (Jet Turbines) Sky pipe SWB WREN (Jet Turbines).
